Descripción
Características principales
- Los elementos DPM están diseñados para utilizarse con los sensores digitales de potencia de la serie 5010 / 5014.
- Usando el diseño familiar de elementos de forma, el Elemento DPM puede medir con precisión la potencia promedio real.
- Todos los elementos ensamblables están calibrados de acuerdo a los minuciosos procedimientos de calibración BIRD, avalados por un largo historial de valores de desviación media para asegurar la certificación a las especificaciones estipuladas de los instrumentos actuales, así como la intercambiabilidad en campo con equipos comprados desde su inicio.
Especificaciones técnicas
| Model |
Freq. Range (MHz) |
FWD Power |
RFL Power |
FWD Element |
RFL Element |
| DPM-50H |
2-30 |
1.25 W to 50 W |
125 mW to 5 W |
DPM-50H |
DPM-5H |
| DPM-500H |
2-30 |
12.5 W to 500 W |
1.25 W to 50 W |
DPM-500H |
DPM-50H |
| DPM-50A |
25-60 |
1.25 W to 50 W |
125 mW to 5 W |
DPM-50A |
DPM-5A |
| DPM-500A |
25-60 |
12.5 W to 500 W |
1.25 W to 50 W |
DPM-500A |
DPM-50A |
| DPM50B |
50-125 |
1.25 W to 50 W |
125 mW to 5 W |
DPM-50B |
DPM-5B |
| DPM-500B |
50-125 |
12.5 W to 500 W |
1.25 W to 50 W |
DPM-500B |
DPM-50B |
| DPM-1000B |
50-125 |
25 W to 1.0 kW |
2.5 W to 100 W |
DPM-1000B |
DPM-100B |
| DPM-50C |
100-250 |
1.25 W to 50 W |
125 mW to 5 W |
DPM-50C |
DPM-5C |
| DPM-500C |
100-250 |
12.5 W to 500 W |
1.25 W to 50 W |
DPM-500C |
DPM-50C |
| DPM-2500C |
100-250 |
62.5 W to 2.5 kW |
6.25 W to 250 W |
DPM-2500C |
DPM-250C |
| DPM-5D |
200-500 |
125 mW to 5 W |
12.5 mW to 500 mW |
DPM-5D |
DPM-.5D |
| DPM-50D |
200-500 |
1.25 W to 50 W |
125 mW to 5 W |
DPM-50D |
DPM-5D |
| DPM-500D |
200-500 |
12.5 W to 500 W |
1.25 W to 50 W |
DPM-500D |
DPM-50D |

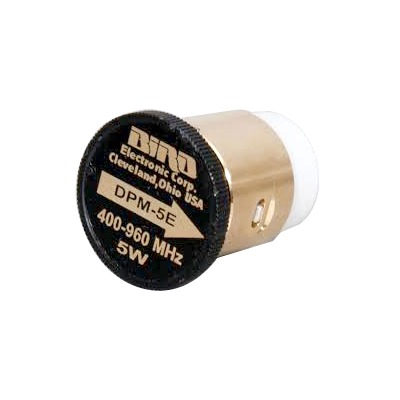

| DPM-5E |
400-960 |
125 mW to 5 W |
12.5 mW to 500 mW |
DPM-5E |
DPM-.5E |
| DPM-50E |
400-960 |
1.25 W to 50 W |
125 mW to 5 W |
DPM-50E |
DPM-5E |
| DPM-100E |
400-960 |
2.5 W to 100 W |
250 mW to 10 W |
DPM-100E |
DPM-10E |
| DPM-500E |
400-960 |
12.5 W to 500 W |
1.25 W to 50 W |
DPM-500E |
DPM-50E |
| DPM-1000E |
400-960 |
25 W to 1.0 kW |
2.5 W to 100 W |
DPM-1000E |
DPM-100E |
| DPM-5J |
950-1260 |
125 mW to 5 W |
12.5 mW to 500 mW |
DPM-5J |
DPM-.5J |
| DPM-50J |
950-1260 |
1.25 W to 50 W |
125 mW to 5 W |
DPM-50J |
DPM-5J |
| DPM-5K |
1100-1800 |
125 mW to 5 W |
12.5 mW to 500 mW |
DPM-5K |
DPM-.5K |
| DPM-50K |
1100-1800 |
1.25 W to 50 W |
125 mW to 5 W |
DPM-50K |
DPM-5K |
| DPM-5L1 |
1700-1990 |
125 mW to 5 W |
12.5 mW to 500 mW |
DPM-5L1 |
DPM-.5L1 |
| DPM-50L1 |
1700-1990 |
1.25 W to 50 W |
125 mW to 5 W |
DPM-50L1 |
DPM-5L1 |
| DPM-500L1 |
1700-1990 |
12.5 W to 500 W |
1.25 W to 50 W |
DPM-500L1 |
DPM-50L1 |
| DPM-5L2 |
1990-2200 |
125 mW to 5 W |
12.5 mW to 500 mW |
DPM-5L2 |
DPM-.5L2 |
| DPM-50L2 |
1990-2200 |
1.25 W to 50 W |
125 mW to 5 W |
DPM-50L2 |
DPM-5L2 |
| DPM-5M |
2200-2300 |
125 mW to 5 W |
12.5 mW to 500 mW |
DPM-5M |
DPM-.5M |
| DPM-25M |
2200-2300 |
625 mW to 25 W |
62.5 mW to 2.5 W |
DPM-25M |
DPM-2.5M |
| DPM-5N |
2300-2500 |
125 mW to 5 W |
12.5 mW to 500 mW |
DPM-5N |
DPM-.5N |
| DPM-5R |
2500-2700 |
125 mW to 5 W |
12.5 mW to 500 mW |
DPM-5R |
DPM-.5R |
*Pregunte por tiempo de entrega.
